IWS-0822 multifunctional Automatic Cable Wire Stripper 0.35-8.2mm² Stripping Crimper Crimping Plier Cable Cutter Tool

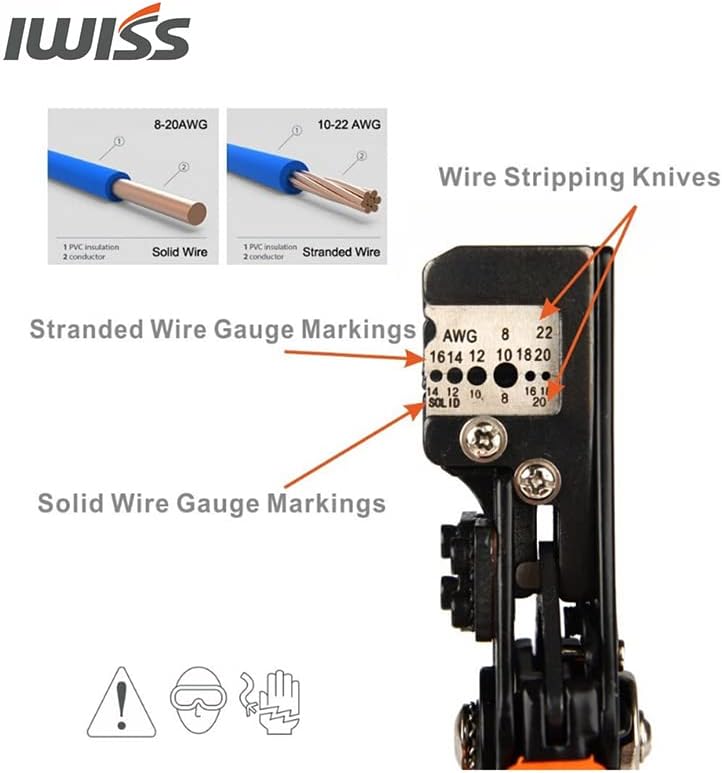

Features:Compound action wire stripping: grip and strip via single action squeezing motion.Remove up to 1″(24mm) in length of the insulation layer (jacket layer) in a single step.Tension loaded wire-grip gently holds the cable in place while retaining the cable geometry.Cast alloy chassis with heavy-duty Ecoat finish for corrosion resistance and durability.Stranded Wires: AWG 22-10Solid Wires: AWG 20-8Cutting range: Max AWG 10STRIPPING AWG 8-22 WIRE1.Place the wire perpendicular to the appropriate gauge cutting knives.2.Extend the edge of the wire to the desired strip depth ( not to exceed 1"), extending from the edge of the cutting knives.3.Quickly squeeze the handles together-the knives will engage and remove the insulation layer ( insulation jacket), exposing the bare wire.4.Upon completion of the strip cycle, release the handles and the jaws will open, releasing the stripped wire.NOTE: For clear nylon-jacket conductors, two activations are required.

• Model: IWS-0822
• Length : 170mm
• Cuts and strips 8-22 AWG wire with ease
• Weight: 390g
• Quantity: 1pc
